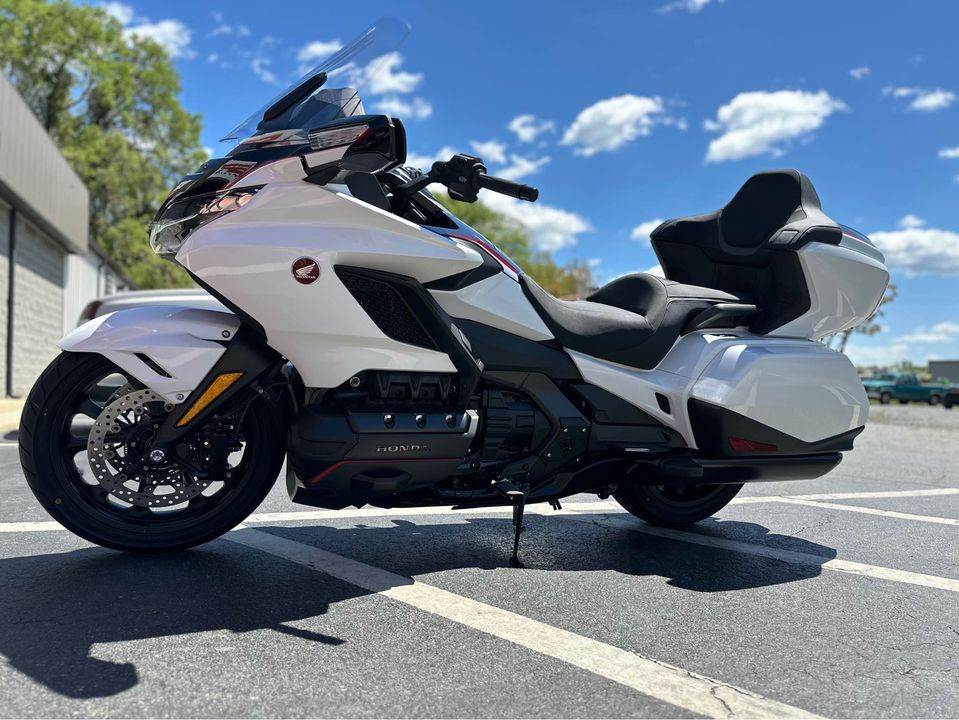

HONDA GOLD WING TOUR MOTORCYCLE

Description

ENGINE
Engine Type

Liquid-cooled 4-stroke 24 valve SOHC flat-6

Engine Displacement

1,833cc

Bore and Stroke

73mm x 73mm

Carburation

PGM-FI electronic fuel injection

Compression Ratio

10.5:1

Ignition

Starter

Integrated Starter Generator system

Oil Capacity

4.4 litres (MT)

PERFORMANCE
Max Torque

170Nm/4500rpm

Max Power

93kW/5500rpm

DIMENSIONS
Length x Width x Height

Wheelbase

1695mm

Ground Clearance

130mm

Seat Height

745mm

Fuel Capacity

21.1 litres

Tyres Front

130/70R18 M/C

Tyres Rear

200/55R16 M/C

Brakes Front

320mm x 4.5mm dual hydraulic disc with 6-piston calliper, floating rotors and sintered metal pads

Brakes Rear

316mm x 11mm ventilated disc with 3-piston calliper and sintered metal pads

Dimensions

Kerb Weight

385kg (MT)

Dry Weight

WHEELS
Suspension Front

Double Wishbone

Suspension Rear

Pro Link

Wheels Front

18M/C x MT3.5

Wheels Rear

16M/C x MT6.0

TRANSMISSION
Transmission

6 speed

Gearbox

6 speed Manual including overdrive and electric reverse

Final Drive

Enclosed shaft

Transmission Type

6 speed

FRAME
Frame Type

Aluminum die-cast, twin tube
