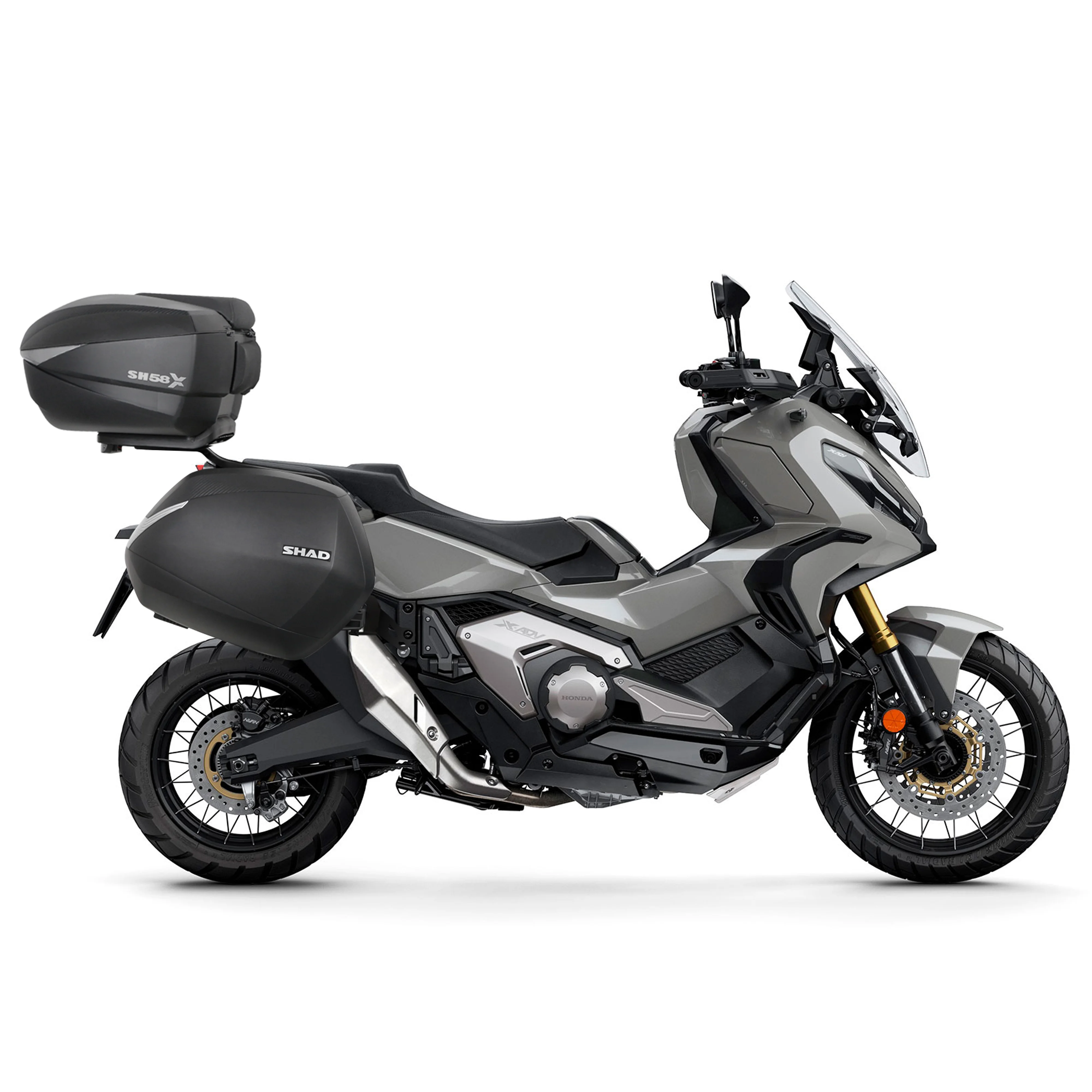

New HONDA X-ADV 750 Scooter

Description

ENGINE

Type
Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder. EURO5 compliant.
Displacement
745cc
Bore & Stroke
77mm x 80mm
Compression Ratio
10.7 : 1
Max. Power Output
43.1kW @ 6,750rpm
Max. Torque
69Nm @ 4,750rpm
Oil Capacity
4.0L
FUEL SYSTEM

Carburation
PGM-FI electronic fuel injection
Fuel Tank Capacity
13.2 litres
Fuel Consumption
3.6L/100km
ELECTRICAL SYSTEM

Starter
Electric
Battery Capacity
12V/11AH
DRIVETRAIN

Clutch Type
Wet multiplate hydraulic 2-clutch
Transmission Type
6-speed Dual Clutch Transmission
Final Drive
Chain
FRAME

Type
Diamond; steel pipe
CHASSIS

Dimensions (L´W´H)
2215mm x 940mm x 1370mm
Wheelbase
1590mm
Caster Angle
27°
Trail
104mm
Seat Height
820mm
Ground Clearance
165mm
Kerb Weight
236kg
SUSPENSION

Type Front
41mm USD,153.5mm fork stroke (137mm axle travel)
Type Rear
Monoshock damper, Pro-Link swingarm, 150mm axle travel (53mm cushion stroke)
WHEELS

Type Front
Spoke wheel
Type Rear
Spoke wheel
Rim Size Front
17M/C x MT3.50
Rim Size Rear
15M/C x MT4.50
Tyres Front
120/70-R17M/C
Tyres Rear
160/60-R15M/C
BRAKES

ABS System Type
2-channel
Type Front
296mm dual discs with 4-piston calipers
Type Rear
240mm single disc with single-piston caliper
INSTRUMENTS & ELECTRICS

Instruments
5 inch colour TFT Meter
Security System
Smart key system
Headlight
LED DRL
Taillight
LED
