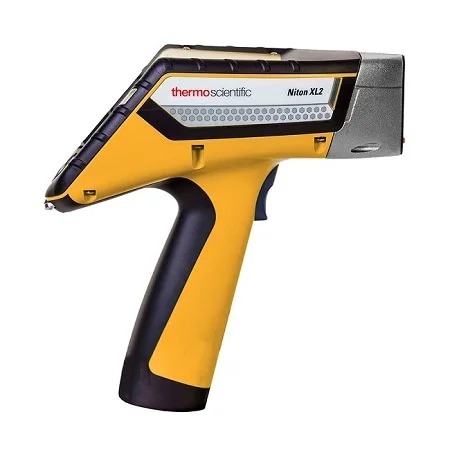

NITON XL2 XRF ANALYZER
PRODUCT INFORMATION
With the value leading Niton XL2 XRF Analyzer, you don’t have to sacrifice performance to get a lightweight, rugged, handheld analyzer perfectly matched for most testing applications.
Point and shoot simplicity- very easy to use even by nontechnical personnel.
Rugged design for real-world industrial environments.
Nondestructive analysis with near instantaneous results.
Sealed against moisture and dust.
Ergonomically designed.
Daylight-readable icons.
Standard analytical range of up to 30 elements from sulfur to uranium.
Color, touch-screen display.
Integrated camera
$2,100.00 $1,500.00
Description
SPECIFICATIONS
Available Analytical Modes Varies by application:Alloy Modes: Metal Alloy, Electronics Alloy, Precious MetalsBulk Modes: Mining, SoilPlastic Modes: RoHS Plastics, Toy and Consumer Goods Plastics,TestAll™, Painted ProductsCustom Modes: Upon request (based on application feasibility)
Data Memory 64 MB internal system memory/128 MB internal user storage
Data Storage Internal >10,000 readings with spectra
Data Transfer USB, Bluetooth and RS-232 serial communication
Description Niton XL2 XRF Analyzer
Detector Type High-performance semiconductor
Display Type Fixed angle, color, touch-screen display
Item Description Niton XL2 XRF Analyzer
Height (English) 4 in.
Height (Metric) 100 mm
Length (English) 10.25 in.
Length (Metric) 256 mm
Width (English) 11 in.
Width (Metric) 275 mm
Optional Accessories Portable test stand; Stationary (bench-top) stand; Mobile test stand; Welding mask; Soil testing guard
Power Consumption 100µA
Security Features Password-protected user security
Standard Accessories Integrated camera; Locking shielded carrying case; Shielded belt holster; Two 6-cell lithium-ion battery packs; 110/220VAC battery charger/AC adaptor; PC connection cables (USB and RS-232); Thermo Scientific ™ Niton Data Transfer (NDT™) PC software; Safety lanyard; Check samples/standards
Tube Type Ag anode 45 kV maximum, 80µA maximum
Weight (English) 3.0 lb., 5.8 oz.
Weight (Metric) 1.53 kg
Voltage 45 kV
System Electronics 400 MHz ARM 11 CPU, 300 MHz dedicated DSP, 80 MHz ASICS DSP for signal processing
Data Entry Touch-screen keyboard, user-programmable pick lists
Licensing Varies by region. Contact your local distributor.
Dimensions (L x W x H) 10.25 x 11 x 4 in. (256 x 275 x 100 mm)
Certifications/Compliance CE, RoHS
